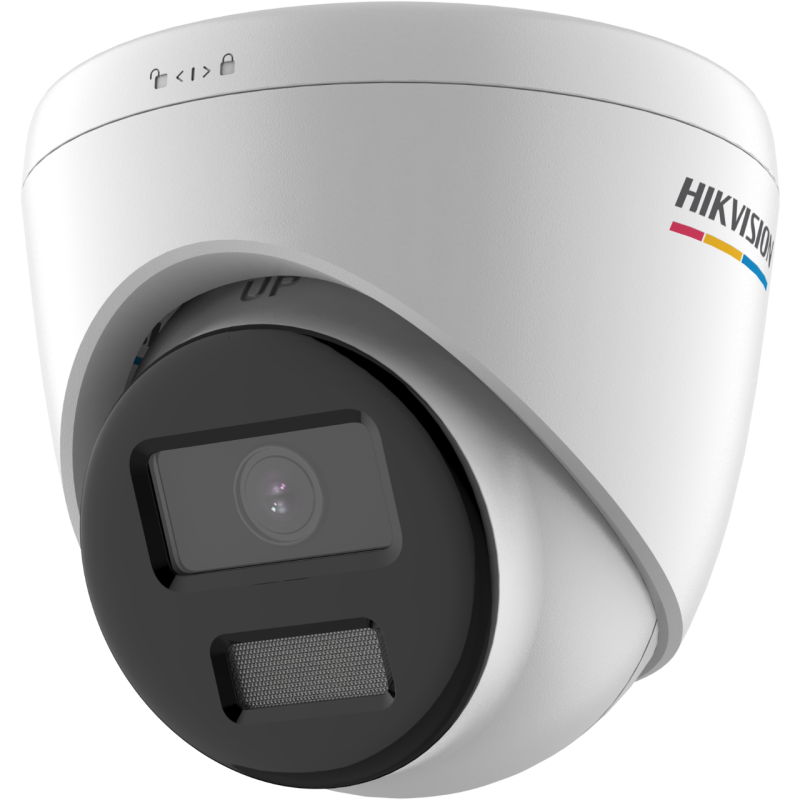

4 MP ColorVu Fixed Turret Network Camera 20-2CD1347G0-L

Τεχνικά Χαρακτηριστικά:

• High quality imaging with 4 MP resolution
• Excellent low-light performance
• Efficient H.265+ compression technology
• Water and dust resistant (IP67)
• 24/7 colorful imaging
• Camera
• Image Sensor1/3″ Progressive Scan CMOS
• Min. IlluminationColor: 0.001 Lux @(F1.0, AGC ON), 0 Lux with white light
• Shutter Speed1/3 s to 1/100, 000 s
• Slow ShutterYes
• Wide Dynamic Range120 dB
• Angle AdjustmentPan: 0° to 360°, tilt: 0° to 75°, rotate: 0° to 360°
  • Lens
  • Focal Length & FOV2.8 mm, horizontal FOV 96.5°, vertical FOV 50.8°, diagonal FOV 113.9°

    4 mm, horizontal FOV 75.8°, vertical FOV 40.8°, diagonal FOV 89.1°

  • Lens MountM12
  • FocusFixed
  • ApertureF1.0
  • DORI
  • DORI2.8 mm, D: 64.0 m, O: 25.4 m, R: 12.8 m, I: 6.4 m

    4 mm, D: 77.4 m, O: 30.7m, R: 15.5m, I: 7.7 m

  • Illuminator
  • Smart Supplement LightYes
  • White Light RangeUp to 30 m
  • Video
  • Max. Resolution2560 × 1440
  • Main Stream50 Hz:

    20 fps (2560 × 1440),

    25 fps (1920 × 1080, 1280 × 720)

    60 Hz:

    20 fps (2560 × 1440),

    30 fps (1920 × 1080, 1280 × 720)

  • Sub-Stream50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360)

    60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360)

  • Video CompressionMain stream: H.265/H.264

    Sub-stream: H.265/H.264/MJPEG

  • Video Bit Rate32 Kbps to 8 Mbps
  • H.264 TypeBaseline Profile/Main Profile/High Profile
  • H.265 TypeMain Profile
  • H.264+Main stream supports
  • H.265+Main stream supports
  • Region Of Interest (ROI)1 fixed region for main stream
  • Audio
  • Audio Compression-UF: G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/AAC
  • Audio Bit Rate-UF: 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 160 Kbps (MP2L2)/16 to 64 Kbps (AAC)
  • Audio Sampling Rate-UF: 8 kHz/16 kHz
  • Environment Noise Filtering-UF: Yes
  • Network
  • ProtocolsTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP™, SMTP, IGMP, 802.1X, QoS, IPv6, Bonjour, IPv4, UDP, SSL/TLS
  • Simultaneous Live ViewUp to 6 channels
  • APIOpen Network Video Interface, ISAPI
  • User/HostUp to 32 users. 3 levels: administrator, operator and user
  • ClientiVMS-4200, Hik-Connect
  • Web BrowserPlug-in required live view: IE 10+

    Plug-in free live view: Chrome 57.0+, Firefox 52.0+

    Local service: Chrome 57.0+, Firefox 52.0+

  • Image
  • Image SettingsSaturation, brightness, contrast, sharpness, AGC, white balance adjustable by client software or web browser.
  • Day/Night SwitchDay, Night, Auto, Schedule
  • Image EnhancementBLC, 3D DNR
  • Interface
  • Ethernet Interface1 RJ45 10 M/100 M self-adaptive Ethernet port
  • On-Board Storage-UF: Built-in memory card slot, support microSD card, up to 256 GB
  • Built-In Microphone-UF: Yes
  • Hardware Reset-UF: Yes
  • Event
  • Basic EventMotion detection, video tampering alarm, exception
  • General
  • Linkage MethodUpload to FTP/memory card (-UF), notify surveillance center, send email, trigger recording (-UF), trigger capture
  • Camera MaterialMetal & Plastic
  • Camera DimensionØ109.9 mm × 103.6 mm (Ø4.33″ × 4.08″)
  • Package Dimension150 mm × 150 mm × 141 mm (5.9″ × 5.9″ × 5.6″)
  • Camera WeightApprox. 380 g (0.84 lb.)
  • With Package WeightApprox. 600 g (1.32 lb.)
  • Storage Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity: 95% or less (non-condensing)
  • Startup And Operating Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity: 95% or less (non-condensing)
  • Web Client LanguageEnglish, Ukrainian
  • General FunctionAnti-flicker, heartbeat, mirror, password protection, privacy mask, watermark, IP address filter
  • Firmware VersionV5.5.122
  • Power Consumption And Current12 VDC, 0.4 A, max. 5 W

    PoE: (802.3af, 36 V to 57 V), 0.2 A to 0.15 A, max. 6.5 W

  • Power Supply12 VDC ± 25%

    PoE: 802.3af, Class 3

  • Power InterfaceØ5.5 mm coaxial power plug
  • Approval
  • EMCFCC SDoC (47 CFR Part 15, Subpart B);

    CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014);

    RCM (AS/NZS CISPR 32: 2015);

    KC (KN 32: 2015, KN 35: 2015)

  • SafetyUL (UL 60950-1);

    CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014);

    CE-LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014);

    BIS (IS 13252(Part 1):2010+A1:2013+A2:2015)

  • EnvironmentCE-RoHS (2011/65/EU);

    WEEE (2012/19/EU);

    Reach (Regulation (EC) No 1907/2006)

  • ProtectionIP67
